F22 70mm

RC Electric Jet Plane

                          orangebutton buy now copyredbutton copy.png product spares

  • Features:

    • Large High Scale RC Model
    • Radio Controlled 2.4GHz, 6 Channel EDF Jet (Aileron, Elevator, Rudder, Throttle, Retractable Landing Gear)
    • Excellent stability of nosing up and down.
    • Full aerobatic characteristics: inside loops, outside loops, axial rolls, inverted flight, knife edge, stall turns, hammerheads, and spins are possible
    • Steerable Nose Wheel
    • EPO foam material. High simulation. Unique design, fine making in details.
    • 70mm EDF (Electric Ducted Fans) and brushless motors
    • High speed (up to 100km/h) depends on the accessories.
    • 2.4GHz spectrum remote transceiver available, with the functions of automatic identification and precise code pairing, strong anti-jamming, and allow more than 20 aircrafts to fly at the same field at same time
    • Electronically retractable landing gear

  • More Images:

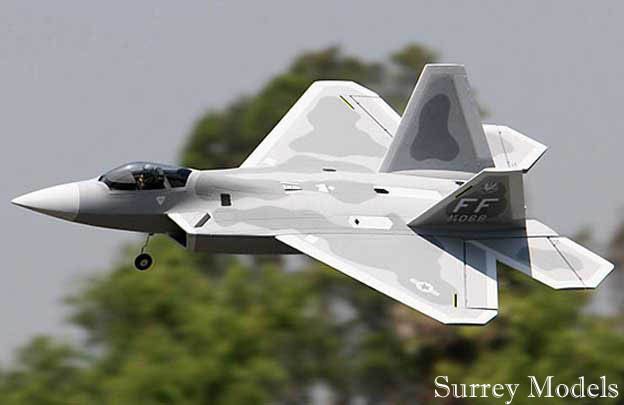

    Radio Controlled Electric Jet Plane

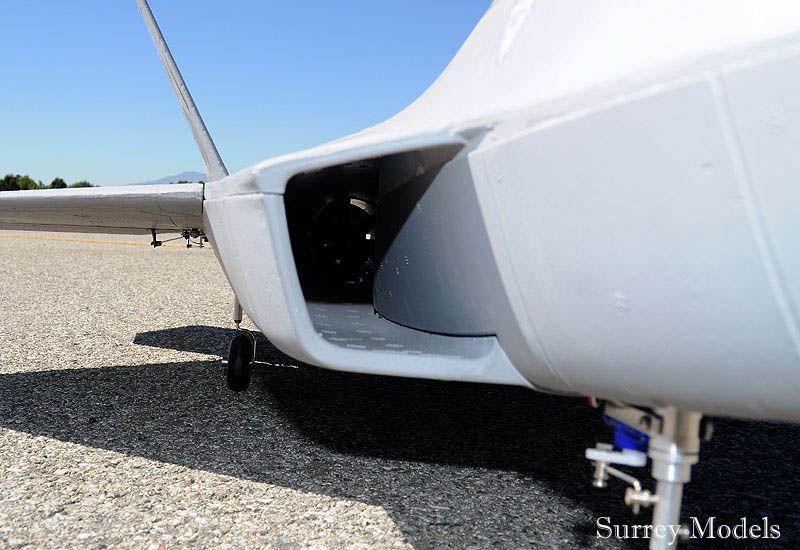

    Remote Control Electric Jet Plane

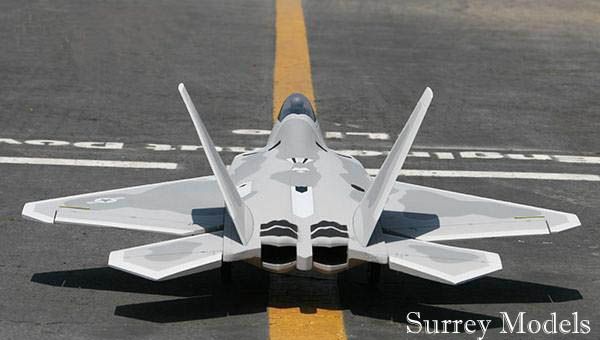

    RC EDF Fighter Jet

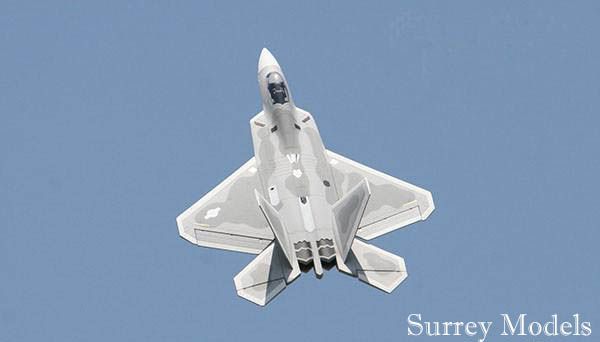

    Radio Controlled EDF Fighter Jet

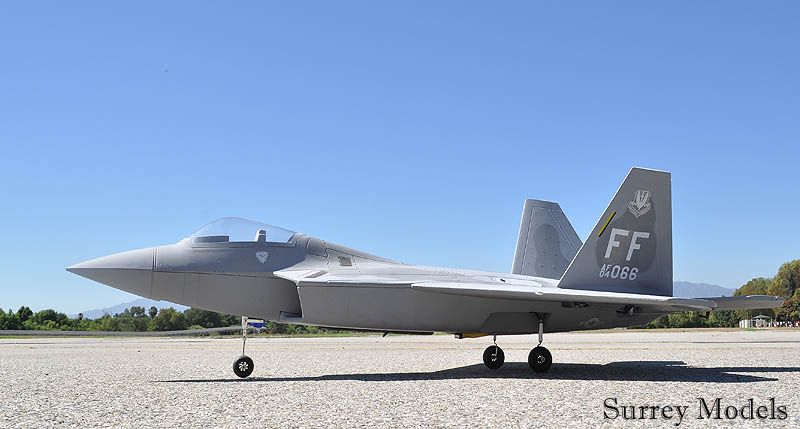

    Remote Control EDF Fighter Jet

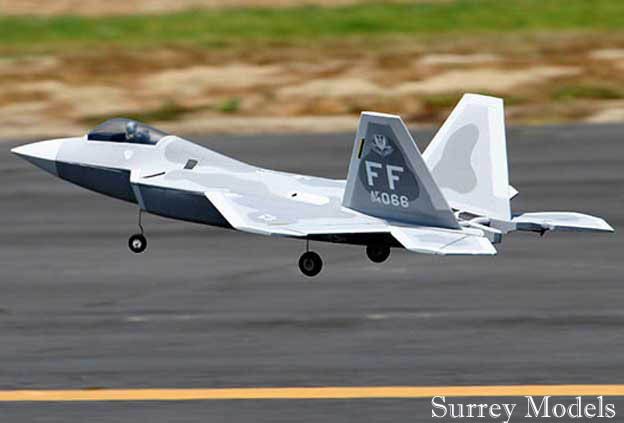

    RC LX F22 70mm Jet

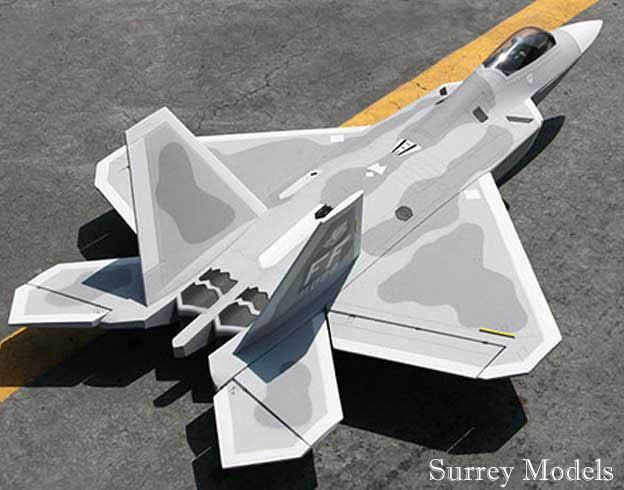

    Radio Controlled Surrey Models F22 70mm Jet

    RC Electric Jet Plane

  • Specification:

    Product Name: F22 70mm
    Length: 1230mm (48.5 in)
    Wingspan: 850mm (33.5 in)
    Thrust: More than 1000g
    Flying Weight: 935g (33 oz)
    Wing Area: 27 dm2
    Material: EPO Foam
    EDF Diameter: 70mm
    Radio: 6 Channel
    Servo: 6x 9g high speed micro servos
    Speed Controller: 50A Brushless ESCs
    Retract System: Mechanical Retracts
    Control System: 2.4GHz Multifunctional Transmitter and Receiver
    Drive System: 2850KV Outrunner Brushless Motors
    Aircraft Battery: Li-Po 14.8v/2200mAh 4S (25C)

  • No current video at this time

  • Product Info:

    This Aircraft is NOT A TOY. It is not suitable for children under 14 years of age. Children under the age of 14 must not operate this product alone.  They must be accompanied by an experience adult at all times.

    Flying Skill Level 6Build Level 4Maintenance Level 3

    Flying Skill Level:

    (Great for intermediate and skilled pilots) Extended Flight simulator practice and experienced pilot supervision recommended.

    Build Level:

    Moderate airplane assembly required. Internal wiring and electronics configuration is required. Please dry fit and test all electronics before gluing and securing any components.

    Maintenance Level:

    After every 5 flights and before and after storing airplane, please check all control surface horns and tighten the screws on surface horns if needed. Check the control pushrod clevis to insure no cracks are visible and no clevis has come loose. Check all control surfaces for solid contact between control surfaces, main wings and tail sections. Check for any loose screws anywhere screws are located. Check all wires connecting to the receiver for solid connection.

    Please Note: If you have very little knowledge of Model Plane Assemble or have no Radio Control Flying experience, we would NOT recommend you to purchase this product to learn on.

  • Package Includes:

    There is no clear industry standard definition for RTF, ARF, RXR, KIT, etc. Every manufacturer makes up their own definitions.

    The generally accepted definitions are:

    KIT means that you get all of the components of the plane, i.e.: fuselage, wings, tail, landing gear, even ducted fan, etc., pre-built but not pre-assembled; No electronic parts are included.

    RTF (Ready To Fly) means that you get the complete model, which includes all electronic parts—equipped model itself and RC Transmitter, Receiver, Flight Battery and 90 – 98% assembled. All “RTF” versions will have slight final assembly and setting up to do before flying.
    Required items: RC transmitter AA batteries and Li-po flight battery charger depending on the model aircraft purchased.

    RXR means that you get the RTF but no RC transmitter/Receiver.

    ARF means that you get the RTF but no RC transmitter/Receiver and no aircraft Battery.
