F4 Phantom II

RC Electric Jet Plane

                          orangebutton buy now copyredbutton copy.png product spares

  • Features:

    • Large High Scale RC Model
    • Radio Controlled 2.4GHz, 12 Channel Twin EDF Jet ( Aileron, Elevator, Rudder, Throttle, Retracts, Airbrake Flaps, Electric Brake Function)
    • Full-scale as the real shape, with “Phantom” temperament.
    • Metal shock absorbers retractable landing gears with good Crash-Resistance.

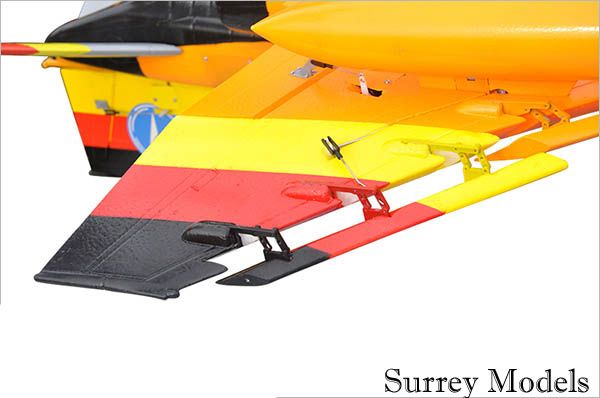

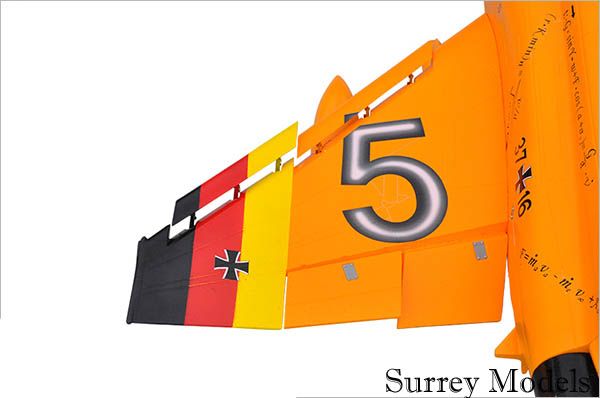

    • High scale flap system, front flap and back flap, improving the safety when taking off and landing.

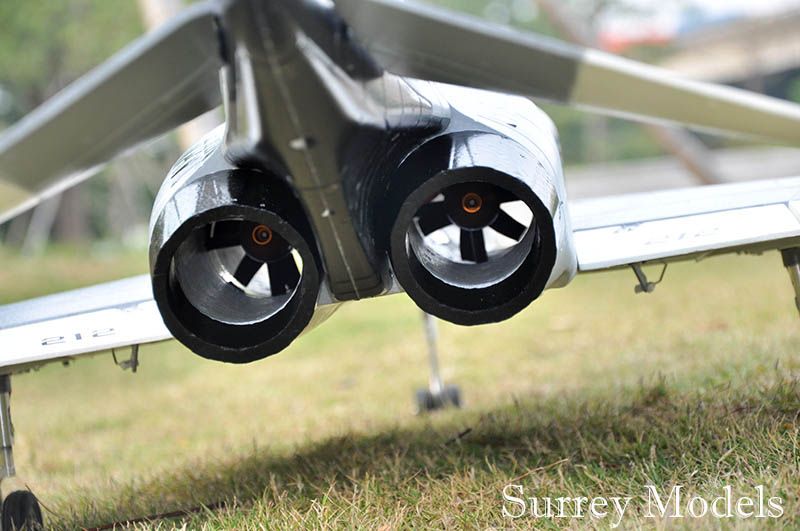

    • Equipped with twin 70mm EDF (Electric Ducted Fans), with plenty of power so that the pilots can finish flip, roll, inverted flight and other tricks, like the real Jet.
    • Excellent aerodynamic design, with stable flight performance no matter in high speed or low speed.
    • Wing, horizontal tail and rudder fixed with screws, no glue required, easy disassembly for the electronic parts.
    • Working brake system, can shorten the running distance when landing.

  • More Images:

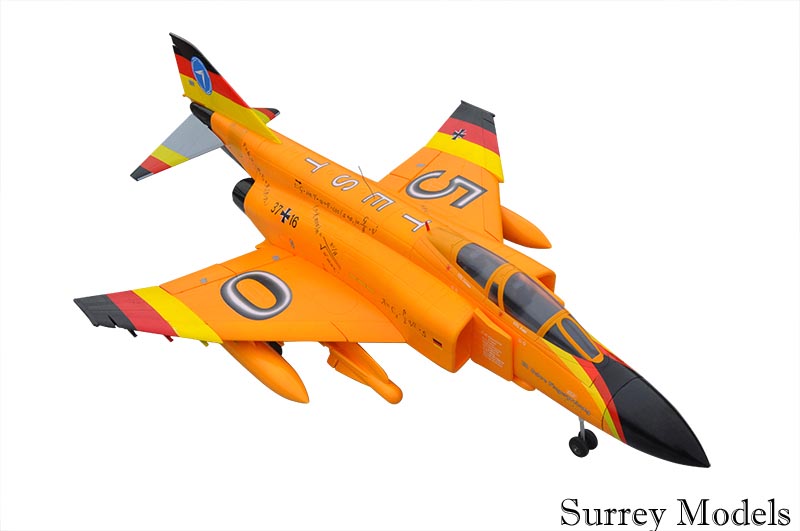

    Radio Controlled Jet

    Remote Control Fighter Jet

    pic-6-named

    pic-7-named

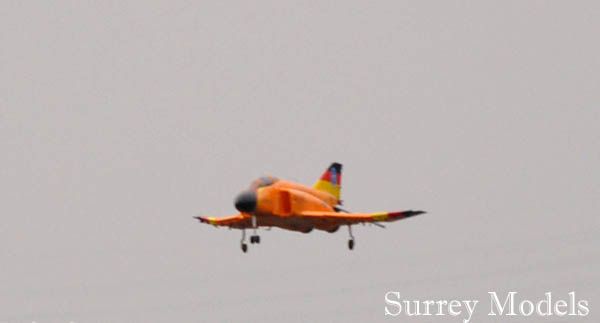

    RC EDF Jet Plane

    Radio Controlled Large Scale Jets

    Remote Control LX F4 Phantom II

    RC Surrey Models F4 Phantom II

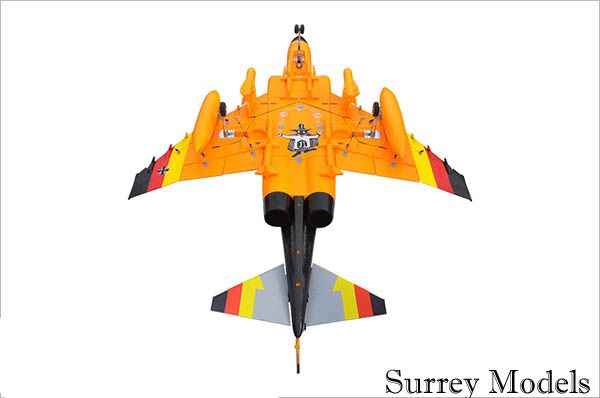

    RC Large EDF Jet

    Radio Controlled Twin EDF MILITARY Jet

    Remote Control Electric Jet Plane

    Electric Jets

    EDF Jets

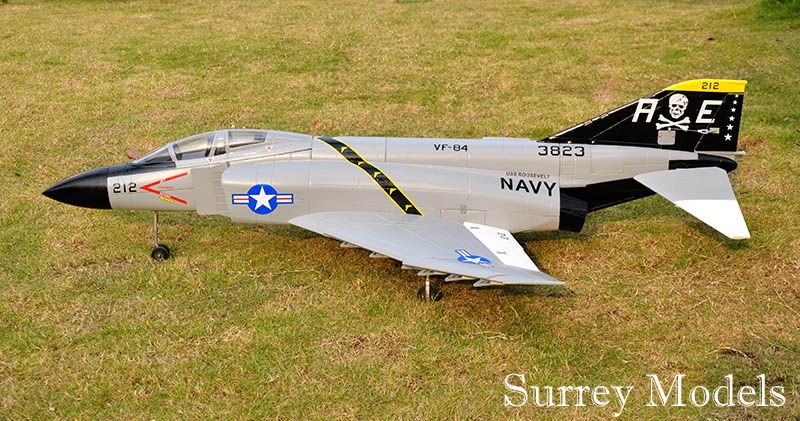

    MILITARY Jets

    Large Scale Jets

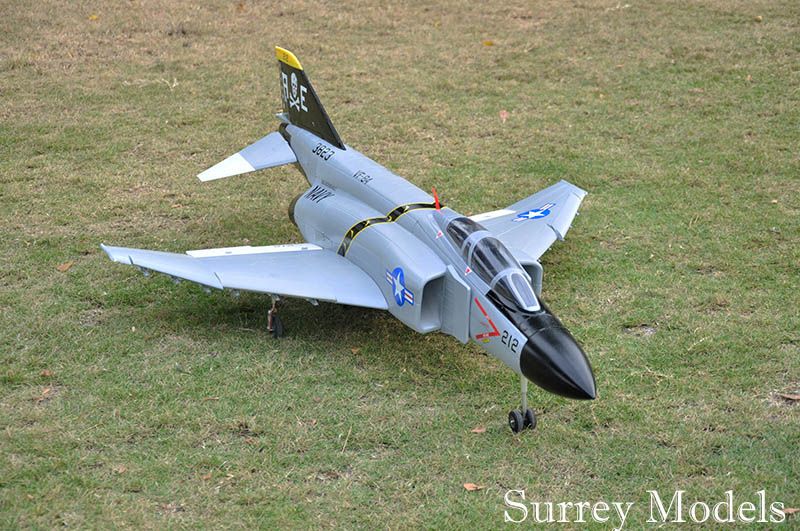

    F4 Phantom II

    RC 12 Channel Jet Plane

    Radio Controlled 12 Channel EDF Jet

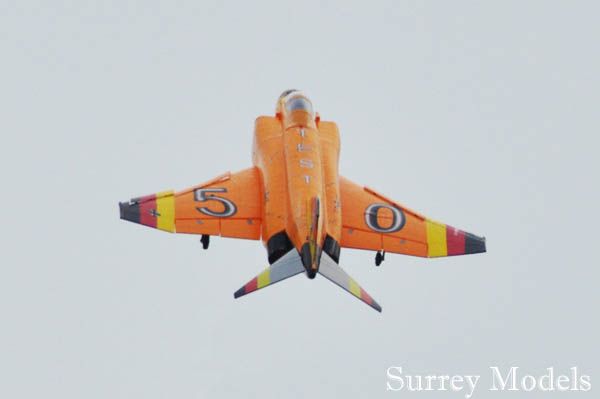

    12 Channel Electric Jets

    Twin EDF Jets

    Jets

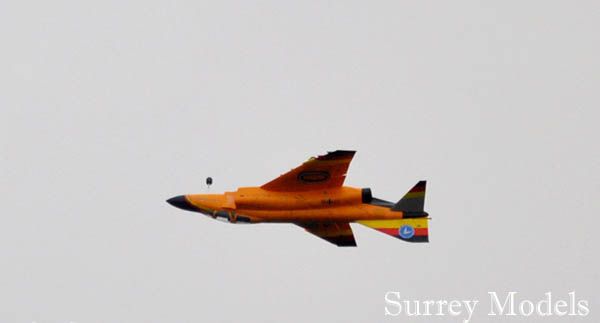

    RC High Scale Jet Plane

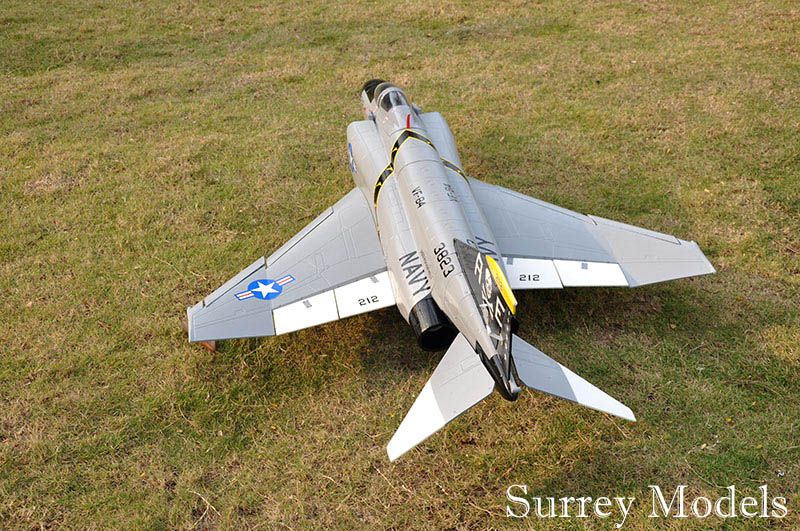

    05-named

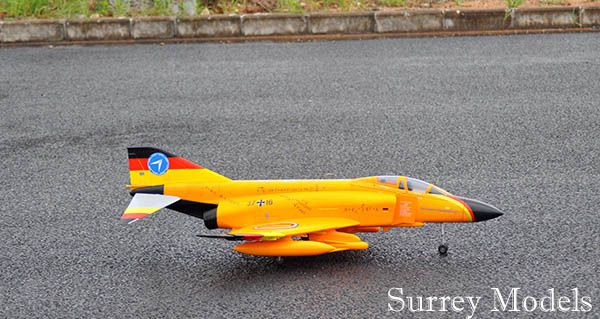

    pic-12-named

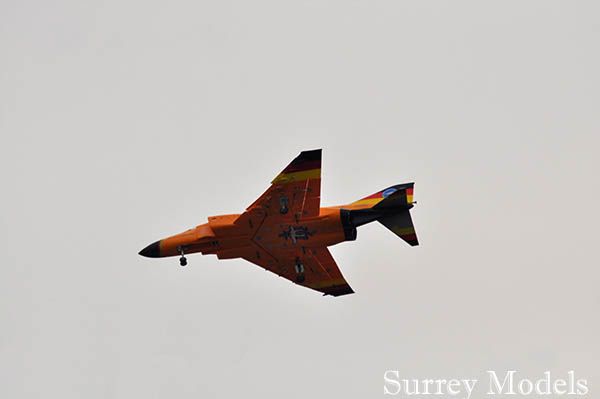

    pic-18-named

    pic-11-named

    RC Electric Jet Plane

  • Specification:

    Product Name: F4 Phantom II
    Length: 1517mm (59.7 in)
    Wingspan: 1017mm (40 in)
    Flying Weight: 2850g (100.5 oz)
    Material: EPO Foam
    EDF Diameter: 70mm
    Radio: 12 Channel
    Servo: 8x 17g high speed micro servos
    Speed Controller: 2x 50A Brushless speed controller w/5A UBEC
    Retract System: Threaded rotary shaft driven
    Control System: 2.4GHz Multifunctional Transmitter and Receiver
    Drive System: 2x 2100KV Outrunner Brushless Motor
    Aircraft Battery: Li-Po 22.2v/4000mAh 6S (25C)

  • No current video at this time

  • Product Info:

    This Aircraft is NOT A TOY. It is not suitable for children under 14 years of age. Children under the age of 14 must not operate this product alone.  They must be accompanied by an experience adult at all times.

    Flying Skill Level 7Build Level 7Maintenance Level 4

    Flying Skill Level:

    (Great for intermediate and skilled pilots) Extended Flight simulator practice and experienced pilot supervision recommended.

    Build Level:

    Moderate airplane assembly required. Internal wiring and electronics configuration is required. Please dry fit and test all electronics before gluing and securing any components.

    Maintenance Level:

    After every 5 flights and before and after storing airplane, please check all control surface horns and tighten the screws on surface horns if needed. Check the control pushrod clevis to insure no cracks are visible and no clevis has come loose. Check all control surfaces for solid contact between control surfaces, main wings and tail sections. Check for any loose screws anywhere screws are located. Check all wires connecting to the receiver for solid connection.

    Please Note: If you have very little knowledge of Model Plane Assemble or have no Radio Control Flying experience, we would NOT recommend you to purchase this product to learn on.

  • Package Includes:

    There is no clear industry standard definition for RTF, ARF, RXR, KIT, etc. Every manufacturer makes up their own definitions.

    The generally accepted definitions are:

    KIT means that you get all of the components of the plane, i.e.: fuselage, wings, tail, landing gear, even ducted fan, etc., pre-built but not pre-assembled; No electronic parts are included.

    RTF (Ready To Fly) means that you get the complete model, which includes all electronic parts—equipped model itself and RC Transmitter, Receiver, Flight Battery and 90 – 98% assembled. All “RTF” versions will have slight final assembly and setting up to do before flying.
    Required items: RC transmitter AA batteries and Li-po flight battery charger depending on the model aircraft purchased.

    RXR means that you get the RTF but no RC transmitter/Receiver.

    ARF means that you get the RTF but no RC transmitter/Receiver and no aircraft Battery.
