Product Description

Features:

• Large High Scale RC Model
• Radio Controlled 2.4GHz, 12 Channel Warbird (Aileron, Elevator, Rudder, Throttle, Flaps, Retracts, Retract Doors, Folding Wings)
• Most scale F4U Corsair yet on the market!

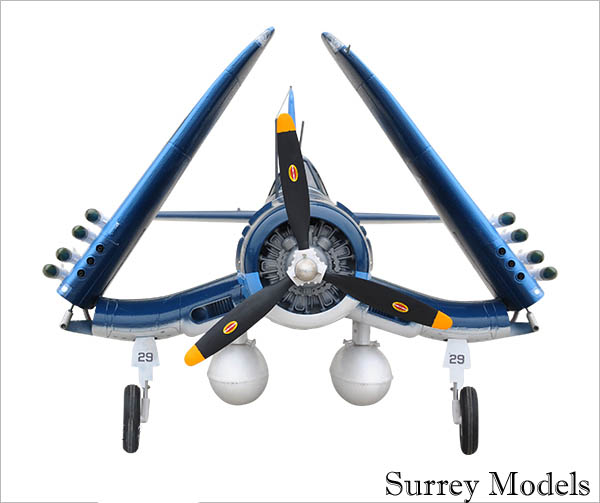

• World’s first 1.2M F4U Corsair with working scale mechanical folding wings!
• Working 2-stage flaps
• Working high-scale navigation lights
• Folding/Detachable main wings excellent for transportation
• Constructed of EPO Flex Foam for Excellent Impact Resistance!

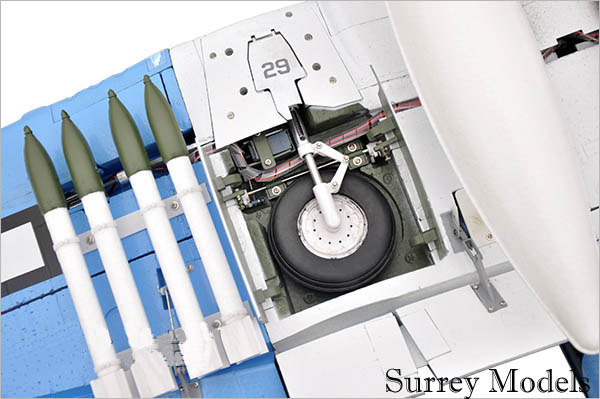

• Reliable servoless 90-degree rotating metal screw retracts
• Approximately 10-15 minutes flight time on each charge
• All spare parts and accessories are available
• High simulation 10 bombs
• New 2.4GHz spectrum technology, with the functions of automatic identification and precise code pairing, strong anti-jamming, and allow more than 20 aircrafts to fly at the same field at same time

Specification:

Product Name:	F4U Corsair 1.2M
Length:	981mm (38.6 in)
Wingspan:	1200mm (47.2 in)
Thrust:	More than 2600g
Radio Control Range:	3000 feet (1000m)
Flying Weight:	2360g (83.2 oz)
Material:	EPO Foam
Propeller:	3-Bladed propeller (12 in)
Radio:	12 Channel
Servo:	10x 17g Digital metal gear servos
Speed Controller:	50A Brushless speed controller
Retract System:	90 Degree Rotating Servoless Screw Retracts
Control System:	2.4GHz Multifunctional Transmitter and Receiver
Drive System:	3748-7000KV Brushless Outrunner Motor
Aircraft Battery:	Li-Po 14.8v/2200mAh 4S (25C)



Product Info:

This Aircraft is NOT A TOY. It is not suitable for children under 14 years of age. Children under the age of 14 must not operate this product alone.  They must be accompanied by an experience adult at all times.



Flying Skill Level:

Advanced and experienced pilots recommended.

Build Level:

Moderate airplane assembly required. Internal wiring and electronics configuration is required. Please dry fit and test all electronics before gluing and securing any components.

Maintenance Level:

After every 5 flights and before and after storing airplane, please check all control surface horns and tighten the screws on surface horns if needed. Check the control pushrod clevis to insure no cracks are visible and no clevis has come loose. Check all control surfaces for solid contact between control surfaces, main wings and tail sections. Check for any loose screws anywhere screws are located. Check all wires connecting to the receiver for solid connection.

Please Note: If you have very little knowledge of Model Plane Assemble or have no Radio Control Flying experience, we would NOT recommend you to purchase this product to learn on.



Package Includes:

There is no clear industry standard definition for RTF, ARF, RXR, KIT, etc. Every manufacturer makes up their own definitions. The generally accepted definitions are: KIT means that you get all of the components of the plane, i.e.: fuselage, wings, tail, landing gear, even ducted fan, etc., pre-built but not pre-assembled; No electronic parts are included. RTF (Ready To Fly) means that you get the complete model, which includes all electronic parts—equipped model itself and RC Transmitter, Receiver, Flight Battery and 90 – 98% assembled. All “RTF” versions will have slight final assembly and setting up to do before flying. Required items: RC transmitter AA batteries and Li-po flight battery charger depending on the model aircraft purchased. RXR means that you get the RTF but no RC transmitter/Receiver. ARF means that you get the RTF but no RC transmitter/Receiver and no aircraft Battery.
